Understanding Standard Solar Panel Dimensions

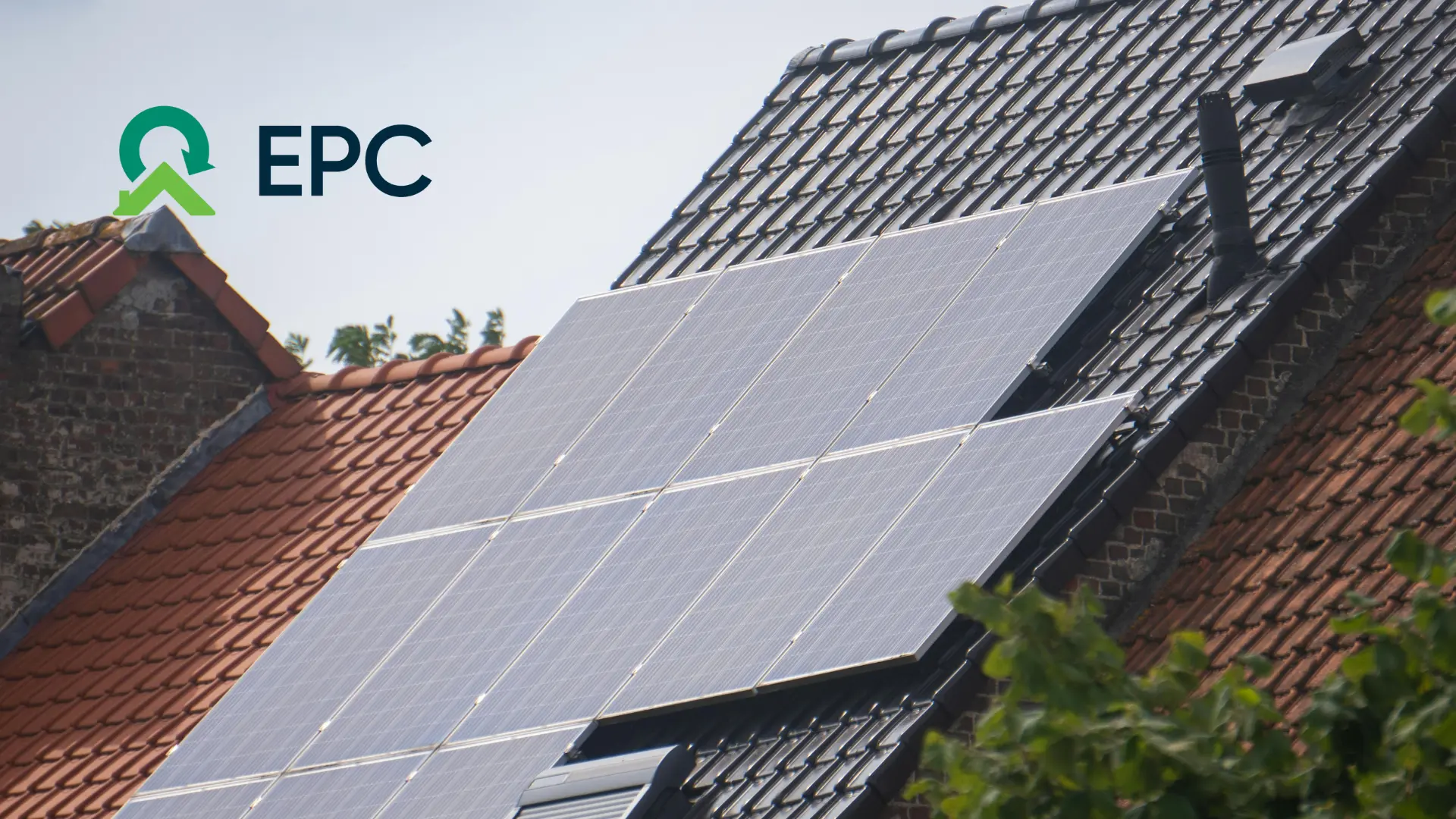

solar panels atop a roof on a grey cloudy day with EPC logo in top left

There's a lot to think about before committing to a solar panel installation. One often forgotten aspect of the process is choosing the right-sized solar panels for your roof.

Solar panel sizes differ depending on the model, which adds both aesthetic and practical complexity to the installation. For example, installing two large panels may not cover as much roof space as installing four smaller panels. This will affect the electricity output generated by your panels, lowering the efficiency of your system.

In this article, we'll guide you through the standard dimensions of solar panels, and advise you on how to choose the right size for your residential or commercial property.

An Overview of Solar Panels

The Mechanics Behind Solar Panels

The process begins when photons from sunlight collide with solar PV cells. This frees the electrons from within the silicone cells, creating an electrical current. This current is then directed to an inverter, which will convert it from a direct current (DC) to an alternating current (AC). Alternating current electricity is the form used by most household and commercial appliances.

Different Types of Solar Cells

There are three main types of solar panel, each with different characteristics. These are: monocrystalline, polycrystalline, and thin-film.

Monocrystalline cells are known for their efficiency and sleek appearance. Polycrystalline cells are less efficient, but are more cost-effective.Thin-film cells are lightweight and offer more flexibility, but they're less efficient than crystalline solar cells.

The Role of Inverters in Solar Systems

Inverters play a vital role in solar energy systems. They are responsible for converting the DC electricity into AC electricity, making it suitable for home use. Modern inverters offer smart features, including energy output monitoring and optimised energy production. They can also provide users with insights into system performance.

Standard Residential Solar Panel Dimensions

Residential Solar Panel Dimensions

In residential settings, the most common solar panel size is approximately 65 inches by 39 inches (165cm x 99cm). These panels tend to weigh around 40 lbs (18kg). Residential solar panels usually contain 60 solar PV cells.

Suitability for Home Installations

The size and weight of residential panels make them ideal for most home installations. Their manageable dimensions allow for easy handling and installation on a variety of roof types. Their efficiency and wattage are usually well-suited to meet the energy needs of regular households.

solar panels on top of a roof

Standard Commercial Solar Panel Dimensions

Commercial Solar Panel Dimensions

Commercial solar panels are usually larger, measuring around 78 inches by 39 inches (198cm x 99cm). They weigh around 50 pounds (23kg) and often have 72 solar cells. This allows for greater energy production.

Advantages for Businesses

The larger size and higher cell count of commercial panels make them incredibly beneficial for businesses with higher energy demands. These panels cover large roof areas, often flat roofs, offsetting energy costs and helping companies reach environmental goals.

a commercial solar panel

What are Thin-Film Solar Panels?

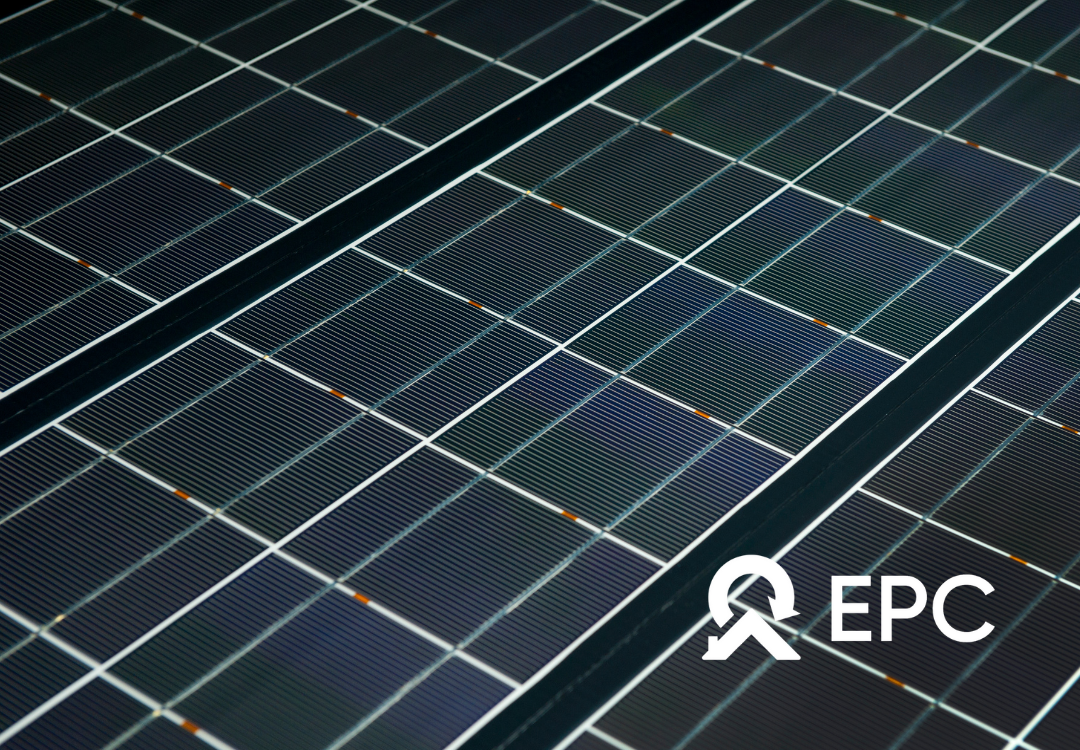

solar panels with white epc logo

Thin-film solar panels offer a slightly different approach to solar energy. They are more flexible and lightweight when compared to crystalline models. However, they are generally less efficient than crystalline panels, more susceptible to degradation, and have shorter lifespans.

Applications of Thin-Film Panels

Thin-film solar panels are often used in installations where weight and flexibility are of greater importance. These include solar on large road vehicles, boats, and unconventional roof structures. Because they are adaptable, they can be integrated into various building materials, which greatly broadens their possibilities.

Efficiency Issues

While thin-film solar panels are undoubtedly versatile, they aren't as efficient as they crystalline counterparts. This means that more surface area is required to produce the same amount of energy, which often isn't possible in the types of spaces which thin-film panels are installed.

Technological Advances

With the advantages of thin-film panels too good to ignore, a lot of research is going into improving their efficiency. This has involved innovations in materials used and the manufacturing process of creating such technology. In time, it's expected that thin-film panels will be able to at least challenge crystalline panels in efficiency, even if they don't eclipse their levels.

How to Choose the Right Solar Panel Size

When you're choosing the right PV panels for your home or business, consider the following:

  • Length and width: The overall dimensions of the panels will have a huge impact on the number of panels you can fit into your available space.

  • Height/thickness: The depth of your panel will affect the mounting options you have, especially on slanted residential roofs.

  • Weight: Heavy panels may require additional support in order to avoid structural damage to your roof.

Analysing Panel Length and Width

The dimensions of your panels determine how much space they take up. Large panels will be able to increase your energy output, but will reduce the space on your roof. This can ultimately leave you with less panel coverage and a lowered energy output.

Analysing Panel Thickness

Thickness has both an aesthetic and functional impact on your solar panel installation. Thinner panels are more discreet and easier to integrate onto your roof. Their lack of thickness will make them more fragile, which really puts pressure on the steady hands of your installer.

Analysing Panel Weight

The weight of your panels has an effect on the logistics of your installation. If you opt for a heavier panel, you need to ensure your roof will be able to support its full weight. This is particularly an issue when installing solar panels on older buildings.

Solar panels come in a variety of sizes, each with advantages and disadvantages. By familiarising yourself with the usual dimensions of solar panels, you can get a better image of how your solar system will look on your roof.

This will also allow you to create a solar design that allows you to extract the maximum energy output from your panels.
